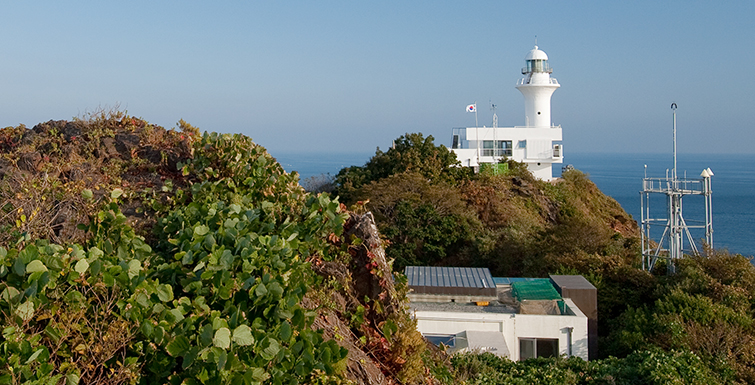

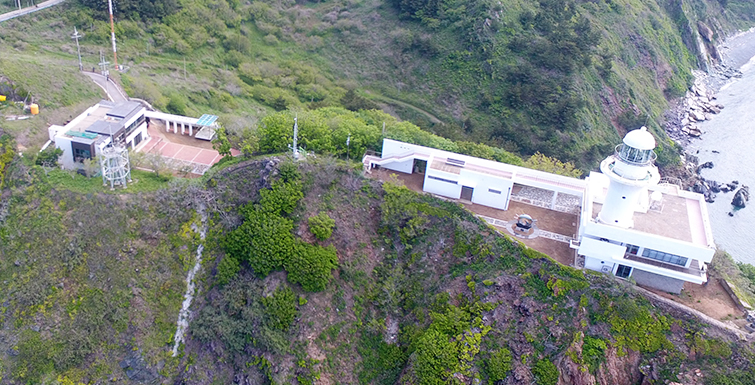

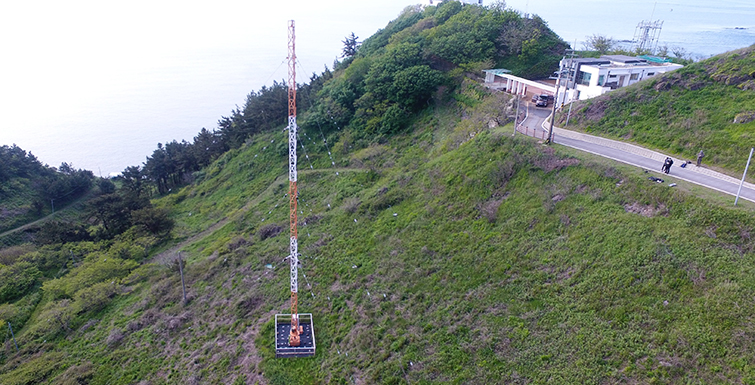

Socheongdo Reference Station
Location
- 279, Socheongseo-ro Daecheong-myeon, Ongjin-gun, Incheon
Key Function(s)
- Generating and broadcasting DGNSS information
- Generating GNSS satellite observation information (RINEX)
- Monitoring signals
Overview of the RS
기준국 정보 - 구분,현황,비고로 구분된 표
| Category |
Status |
Category |
Status |
Remarks |
| Initial installation |
November 2002 |
Radio wave |
500HG1D |
|
| ID(RS1/RS2) |
736(737) |
Output (W) |
300W |
|
| Station no. |
668 |
Range of use |
150Km |
|
| Frequency |
323KHz |
RTCM 2.3 |
3, 5, 7, 9, 16, 32, 33, 34, 35, 36 |
|
| Bandwidth |
50Mbps |
|
|
|
Equipment
장비현황 - 구분,명칭,규격,수량,비고로 구분된 표
| Category |
Name |
Standard |
Quantity |
Remarks |
| Control unit |
Control computer |
Industrial use |
2 computers |
|
| Receiver |
RS Receiver |
NetR9 |
2 units |
|
| IM Receiver |
NetR9 |
2 units |
|
| Power supply |
UPS |
6KVA
| 1 unit |
|
| Others |
Other communication device |
|
1 device |
|
