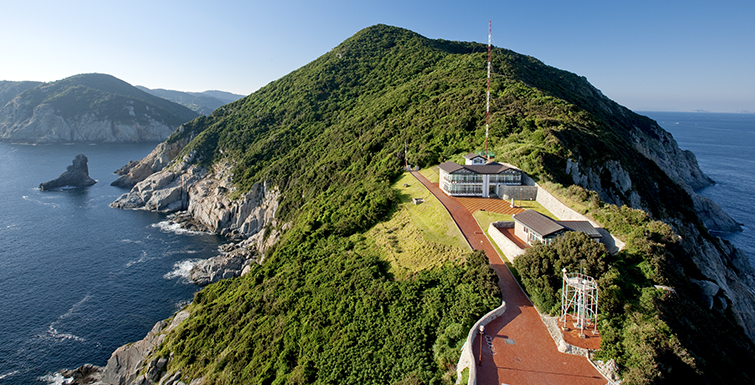

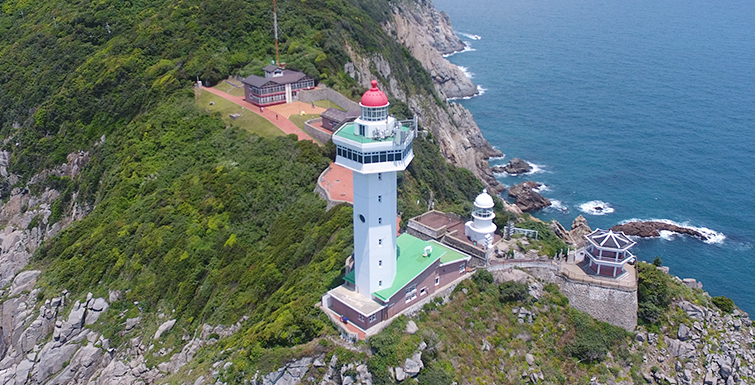

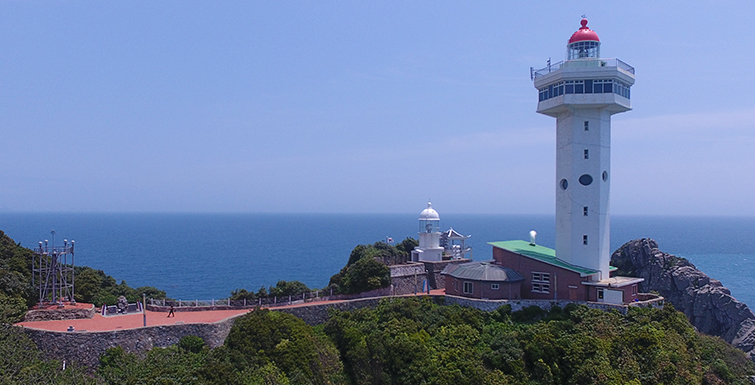

Geomundo Reference Station
Location
- 299, Geomundodeungdae-gil, Samsan-myeon, Yeosu-si, Jeollanam-do
Key Function(s)
- Generating and broadcasting DGNSS information
- Generating GNSS satellite observation information (RINEX)
- Monitoring signals
Overview of the RS
Overview of the RS - Category,Status,Remarks로 Category된 표
| Category |
Status |
Category |
Status |
Remarks |
| Initial installation |
June 2000 |
Radio wave |
500HG1D |
|
| ID(RS1/RS2) |
724(725) |
Output (W) |
300W |
|
| Station no. |
662 |
Range of use |
150Km |
|
| Frequency |
287KHz |
RTCM 2.3 |
3, 5, 7, 9, 16, 32, 33, 34, 35, 36 |
|
| Bandwidth |
50Mbps |
|
|
|
Equipment
Equipment - Category,Name,Standard,Quantity,Remarks로 Category된 표
| Category |
Name |
Standard |
Quantity |
Remarks |
| Control unit |
Control computer |
Industrial use |
2 computers |
|
| Receiver |
RSReceiver |
NetR9 |
2 units |
|
| IMReceiver |
NetR9 |
2 units |
|
| Power supply |
UPS |
6KVA |
1 unit |
|
| Others |
Other communication device |
|
1 device |
|
