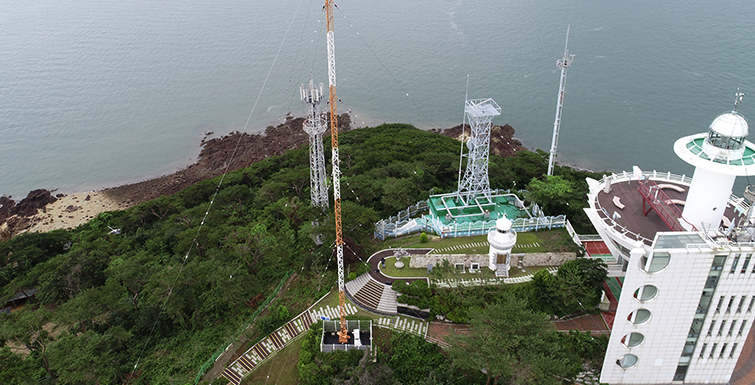

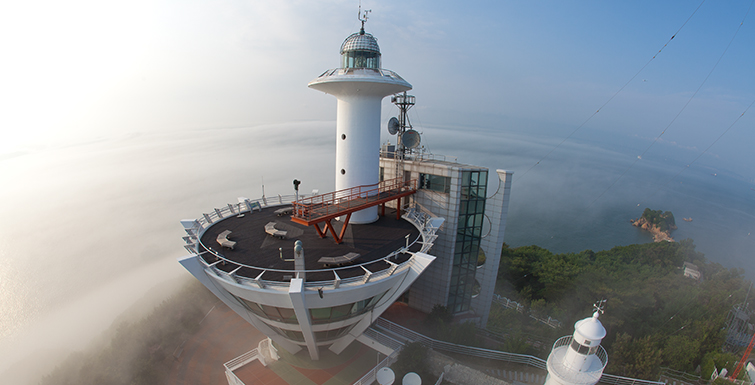

Palmido Reference Station
Location
- 28, Palmi-ro, Jung-gu, Incheon
Key Function(s)
- Generating and broadcasting DGNSS information
- Generating GNSS satellite observation information (RINEX)
- Monitoring signals
Overview of the RS
| Category | Status | Category | Status | Remarks |
|---|---|---|---|---|
| Initial installation | August 1999 | Radio wave | 500HG1D | |
| ID(RS1/RS2) | 722(723) | Output (W) | 300W | |
| Station no. | 661 | Range of use | 150Km | |
| Frequency | 313KHz | RTCM 2.3 | 3, 5, 7, 9, 16, 32, 33, 34, 35, 36 | |
| Bandwidth | 50Mbps |
Equipment
| Category | Status | Standard | Quantity | Remarks |
|---|---|---|---|---|
| Control unit | Control computer | Industrial use | 2 computers | |
| Receiver | RSReceiver | Alloy, NetR9 | 2 units | RS1:Alloy RS2:NetR9 |
| IMReceiver | NetR9 | 2 units | ||
| Power supply | UPS | 6KVA | 1 unit | |
| Others | Other communication device | 1 device |
