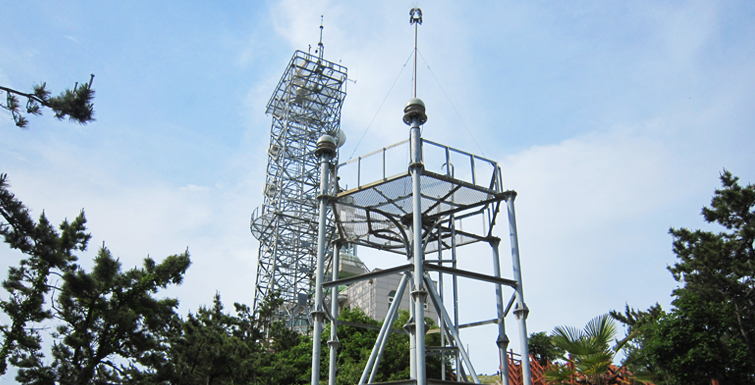

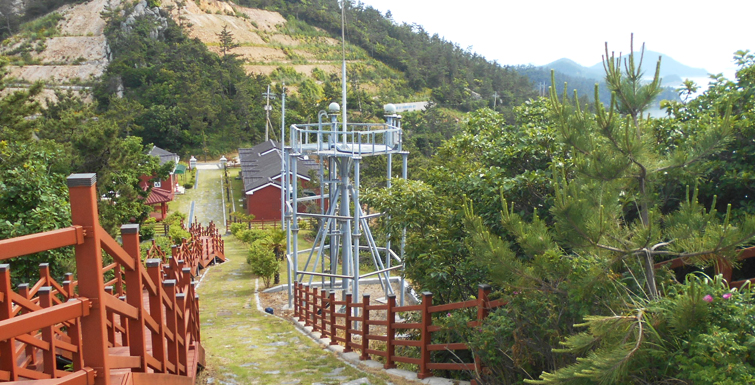

Gasado Integrity Monitoring Station
Location
- 129-103, Gasadodolmok-gil, Jodo-myeon, Jindo-gun, Jeollanam-do
Key Function(s)
- Monitoring DGNSS information and signals
- Generating GNSS satellite observation information (RINEX)
Overview of the IMS
Overview of the IMS - Category,Status table
| Category |
Status |
Category |
Status |
| Initial installation |
September 2001 |
Monitoring target |
Marado Reference Station |
| Monitoring RS ID |
730 |
Monitoring RS frequency |
290KHz |
| Bandwidth |
50Mbps |
Equipment
Equipment - Category,Name,Standard,Quantity,Remarks table
| Category |
Name |
Standard |
Quantity |
Remarks |
| Control unit |
Control computer |
Industrial use |
2 computers |
|
| Receiver |
IM Receiver |
NetR9 |
2 units |
|
| Power supply |
UPS |
2KVA |
1 unit |
|
| Others |
Other communication device |
|
1 device |
|
