Form of a Pulse

Form of a Pulse

For Loran-C pulse, a master station and the secondary stations can receive only one pulse to measure simply the pulse arrival time difference (TD). However, multiple (eight to nine) pulse groups are transmitted in practice. This is to provide more energy to the receiver side without increasing the output of the transmitter.

First, the pulse group launched from the master station is composed of nine pulses. The first eight pulses are transmitted at intervals of 1,000 μs. The last 9th pulse is transmitted at 2,000 μs after the transmission of the 8th pulse.

The purpose is to identify the master station signals and use blink. For secondary stations, a secondary station transmits only eight pulses and uses 100 kHZ as the carrier frequency in order to increase precision. This is called "cycle matching."

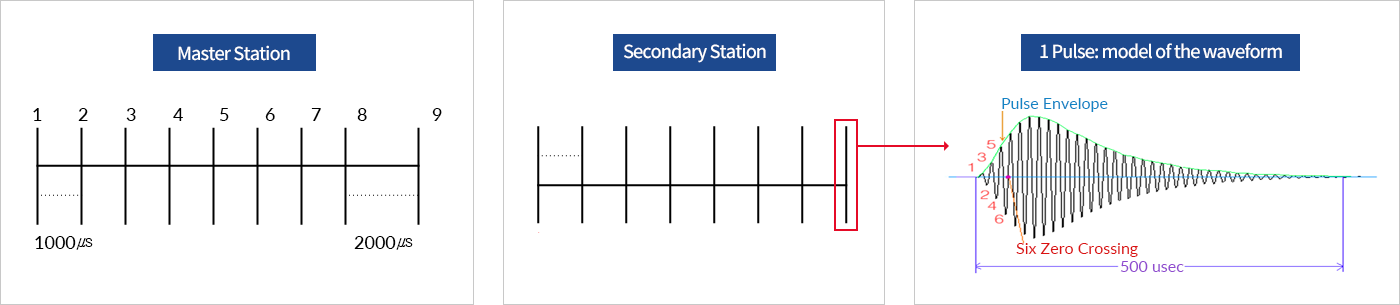

주국에서 발사되는 펄스군은 9개의 펄스로 이루어지며 처음 8개의 펄스까지는 1000㎲간격으로 송신되며, 마지막 9번째 펄스는 8번째 펄스 송신 후 2000㎲가 지난 후 송신,종국의 경우 8개의 펄스만 송신,1개 펄스 : 파형모형 500usec  Pulse Envelope  Six Zero Crossing
