Pohang eLoran/Loran-C station
The Pohang eLoran/Loran-C Station plays the role of a master station (9930-M) for the Korea Chain. Built in 1979 by the US Air Force, the Pohang eLoran/Loran-C Station is currently operated by the Pohang Maritime Radio Beacon Center under the NMPNT of the Ministry of Oceans and Fisheries.
The Pohang eLoran/Loran-C Station performs various tasks including repairing and testing the Loran-C system in South Korea, maintaining and repairing integrity monitoring stations (IMS), and measuring Loran signals. It also supports the monitoring and control, as well as network maintenance and repair work for Okcheon Control Station
The Pohang eLoran/Loran-C Station performs various tasks including repairing and testing the Loran-C system in South Korea, maintaining and repairing integrity monitoring stations (IMS), and measuring Loran signals. It also supports the monitoring and control, as well as network maintenance and repair work for Okcheon Control Station
Pohang eLoran/Loran-C Station’s Tasks
- 01
- Serve as the master station of the Korea Chain
- 02
- Detect radio signals from each transmission station in the Korea Chain
- 03
- Analyze the operational status of Loran-C transmission stations in South Korea and make adjustments accordingly
- 04
- Operate, manage, maintain, and repair the Korea Chain Ganjeolgot Integrity Station
- 05
- Operate, manage, maintain, and repair transmission station facilities and equipment
- 06
- Handle business contact with international maritime radio beacon organizations and cooperate with them

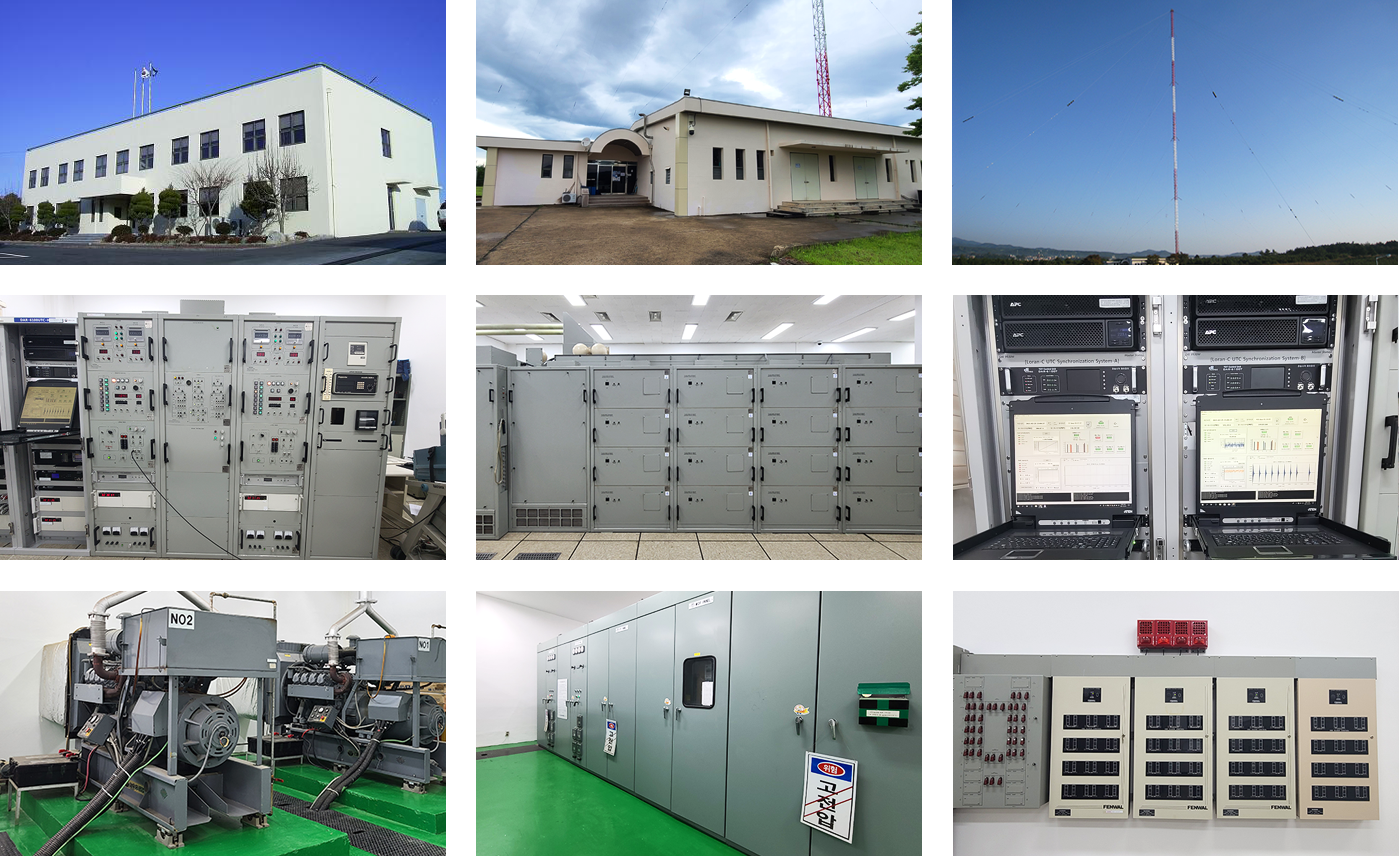

Facilities & Equipment
Category | Name | Place | Purpose | Others |
---|---|---|---|---|
Operation equipment | RCU control and communication system | Operation center | Control ACCUFIX 6500 RCU and control communication with domestic and international Korea Chain transmission stations | |
Transmit IMS data | Operation center | Transmit signals received from IMS to Okcheon Control Station | ||
Monitor Chain signals | Operation center | Monitor and control the Korea Chain signals | ||
Monitor supplementary facilities | Operation center | Monitor conditions of supplementary facilities such as temperature, status, fire alarm, etc. | ||
Monitor transmission signals in Pohang | Operation center | Monitor signals transmitted by the Pohang eLoran/Loran-C Station in real time | ||
Transmission equipment | ACCUFIX 6500 transmitter | Transmission room | Transmit Loran signals | |
Antenna | - | |||
Supplementary facilities | Constant temperature and humidity chamber | Transmission room | Maintain adequate temperature in the transmission room | |
Emergency power generator | Generator room | Supply power when commercial power is cut off | ||
Power supply facility | Switchboard room | Use for high and low voltage | ||
Uninterrupted Power Supply (UPS) | Switchboard room | Supply rated power | ||
Monitoring devices | ACCUFIX 520 Receiver | Transmission room | Installed in the Korea Chain Pyeongtaek Integrity Station | |
URSANAV Receiver (UN-152B) | Transmission room | Installed in the Korea Chain Ganjeolgot Integrity Station |
Station Output
- 150KW
Antenna Height (H)
- 137m
Address
- 20, Cheongha-ro, Cheongha-myeon, Buk-gu, Pohang-si, Gyeongsangbuk-do
