Gwangju eLoran/Loran-C station
The Gwangju eLoran/Loran-C Station plays the role of a secondary station (W) for eLoran and Loran-C Korea Chain (GRI 9930). It has established a time synchronization device that is used to generate precise UTC time and time synchronization information below 1 μs.
Loran-C was installed in 1979 by the US Air Force for tactical purposes and commenced operation of the GRI 9930 Chain in 1995. It currently conducts regular inspection and maintenance of devices and systems in order to meet the recommended operating rate (99.8%) and transmission station operating rate (99.8%) proposed by the Far East Radio Navigation Services (FERNS). It also supervises tasks such as controlling, measuring, and analyzing Loran signals.
Loran-C was installed in 1979 by the US Air Force for tactical purposes and commenced operation of the GRI 9930 Chain in 1995. It currently conducts regular inspection and maintenance of devices and systems in order to meet the recommended operating rate (99.8%) and transmission station operating rate (99.8%) proposed by the Far East Radio Navigation Services (FERNS). It also supervises tasks such as controlling, measuring, and analyzing Loran signals.
Functions & Responsibilities
- 01
- Serve as the secondary station for the Loran-C and eLoran Korea Chain (GRI 9930)
- 02
- Monitor and control Loran-C and eLoran signals
- 03
- Operate and manage Loran-C and eLoran transmission stations and respond to emergencies
- 04
- Inspect and maintain facilities and equipment

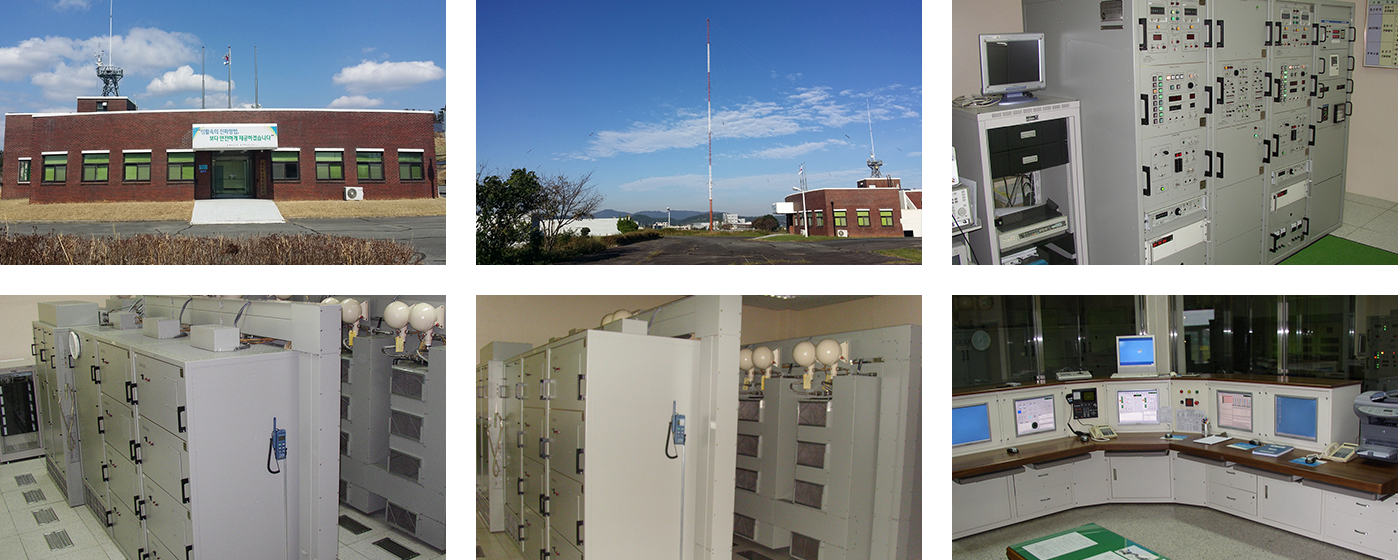

Facilities & Equipment
| Category | Name | Place | Purpose | Others |
|---|---|---|---|---|
| Operation equipment | RCU control and communication system | Operation center | Control ACCUFIX 6500 RCU and control communication with domestic and international Korea Chain transmission stations | |
| Monitor Chain signals | Operation center | Monitor Korea Chain signals | ||
| Monitor supplementary facilities | Operation center | Monitor conditions of supplementary facilities such as temperature, status, fire alarm, etc. | ||
| Transmission equipment | ACCUFIX 6500 transmitter | Transmission room | Transmit Loran signals | |
| Antenna | - | |||
| Supplementary facilities | Constant temperature and humidity chamber | Transmission room | Maintain adequate temperature in the transmission room | |
| Emergency power generator | Generator room | Supply power when commercial power is cut off | ||
| Power supply facility | Switchboard room | Use for high and low voltage | ||
| Uninterrupted Power Supply (UPS) | Switchboard room | Supply rated power |
Station Output
- 50KW
Antenna Height (H)
- 122m
Address
- 28-17, Hakgyowolsan-gil, Hakgyo-myeon, Hampyeong-gun, Jeollanam-do
